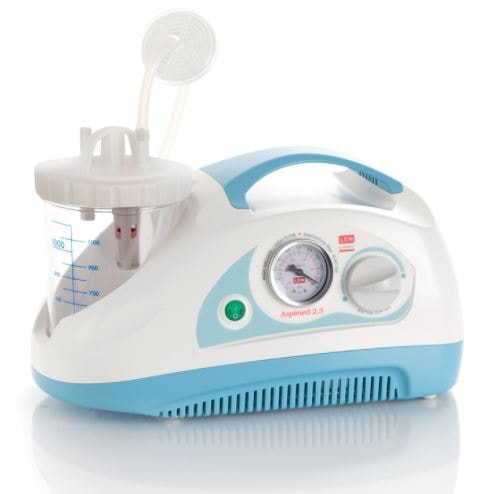

Neovida Aspimed 2.3 Secretion Aspirator

Specifications

Dimensions : 357 x 193 x 215 mm;

Color : White and Blue

Instructions for Use

1. Connect the small silicone tube, with the antibacterial filter, to the suction connector;

2. The other tube, with one end already connected to the filter, must be connected to the outlet of the "VACUUM" reservoir, where the red float (safety float) is installed. When 90% of the reservoir capacity is reached, the safety float is activated (the float closes the suction connector in the reservoir) to prevent liquid from penetrating the device;

3. Connect the long silicone tube to the “PATIENT” reservoir outlet;

4. Connect the other end of the long silicone tube to the probe's plastic connector and then connect the suction probe;

5. Connect the power cable to the device and then plug the plug into the electrical socket;

6. Press the switch to position I to start suction;

7. Unscrew the reservoir cap and fill it up to 1/3 of its capacity with normal water (for easy cleaning and to quickly achieve vacuum functionality) and then tighten it again correctly;

8. During operation, the reservoir must be in a vertical position to prevent the overfill valve from cutting off suction. If this happens, turn off the device and remove the tube from the reservoir lid (from the “VACUUM” outlet);

9. Once you have finished, press the switch to position 0 and unplug it;

10. Remove the accessories and clean.

Article weight : 4,145 kg

Accessory : LRA100 - Valve for secretion aspirator; LRA120 - 6mmx10mm tube set; LRA117 - CH20 Suction Probe; LRA204 - Antibacterial filter.

Maintenance and Storage

Maintenance: To clean the external parts of the device, always use a cotton cloth moistened with detergent. Do not apply abrasive detergents or solvents.
