Neovida Aerosol Nebulizer Minimax RE.300250

Name: Neovida Aerosol Nebulizer Minimax RE.300250
Brand: Neovida
SKU: ED.NEBU.0256
Price: 58.5 EUR
Availability: InStock

€58,50 EUR

-Liquid error (snippets/price line 121): divided by 0% Sold out

Tax included.

Product variants

Quantity

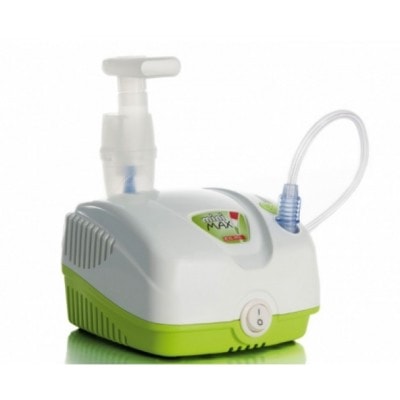

Minimax RE.300250 Aerosol Nebulizer

It is an aerosol therapy nebulizer equipped with an electrically powered compressor.

Designed to provide ease of transport and use, the device is suitable for nebulizing bronchodilator medications and antibiotics.

Accessories included:

HI-FLO Nebullizer;
Adult mask with elastic,
Pediatric mask with elastic;
Nozzle;
Non-invasive nasal hook;
Air hose;
Air filter (2 pieces);
Carrying bag
Separable power cable

Technical Data:

Compressor Pump: No lubrication and/or maintenance
Standard power supply: 230V-50Hz
Power consumption: 170 VA
Maximum pressure: 2.2 bar 36 psi 250 kPa 1:10 bar operating pressure 16 psi 110 kPa
Free flow: 14 L/min
Operating flow: 4.8 L/min
Neb-rate with 4 ml of 0.9% NaCl solution 0.35 ml/min (nebulization speed
Mass average aerodynamic diameter 2.44 uM (DAMM) measured according to EN 13544-1
Respirable fraction (<5 mm) > 80%
Tons of operation: 20 min / Toff: 40 min
Noise (EN 13544-1 standard) 60 db
Weight 1.45 kg
Dimensions 13 x 8.9 x 14.6 centimeters

3 years warranty
Marking: Typology (Directive 93/42/EEC) Class IIa
Brand: CA-MI
Country of origin: Italy

Reference: CA-MI MINIMAX

Technical description

Accessories: HI-4 Nebulizer, Adult Mask, Pediatric Mask, Air Tube and Mouthpiece, Nose Attachment Power Consumption 170 VA;

Power: 230V / 50 Hz; Fuse: F 1 x 1.6AL 250V; Maximum pressure: 250 kPa (2.5 Bar);

Maximum Air Flow: 14 l/min; Operating Pressure: 110 kPa (1.10 Bar);

Operating Air Flow: 5.0 l/min at 110kPa;

MMAD (according to EN 13544-1): 2.44 mm;

Nebulization (with 4ml 0.9% NaCl solution): 0.35 ml /min; GSD: 2.87;

Noise level: +-60 dB; Weight: 1.45 kg;

Specifications

Dimensions : 130 x 89 x 146 mm

Color : White and green

Profile and Instructions for Use : The MiniMax is an aerosol therapy nebulizer equipped with an electrically powered compressor. Designed to provide ease of transport and use, the device is suitable for nebulizing bronchodilator medications and antibiotics.

Item weight : 1,600 kg

Maintenance and Storage

The device has a filter that removes possible impurities from the air sucked in by the compressor.

The air filter must be replaced every 25 hours of operation or when it is exhausted.

To replace, lift the filter and replace it with a new one. Only use original CA-MI filters.

The masks and air tube must be replaced if there are visible signs of decomposition of the material that makes up this component. To clean the device, use a soft, dry cloth and apply non-abrasive, non-solvent detergents.

All cleaning operations must be carried out with the appliance disconnected from the power socket.
